Modular sample and sensor types

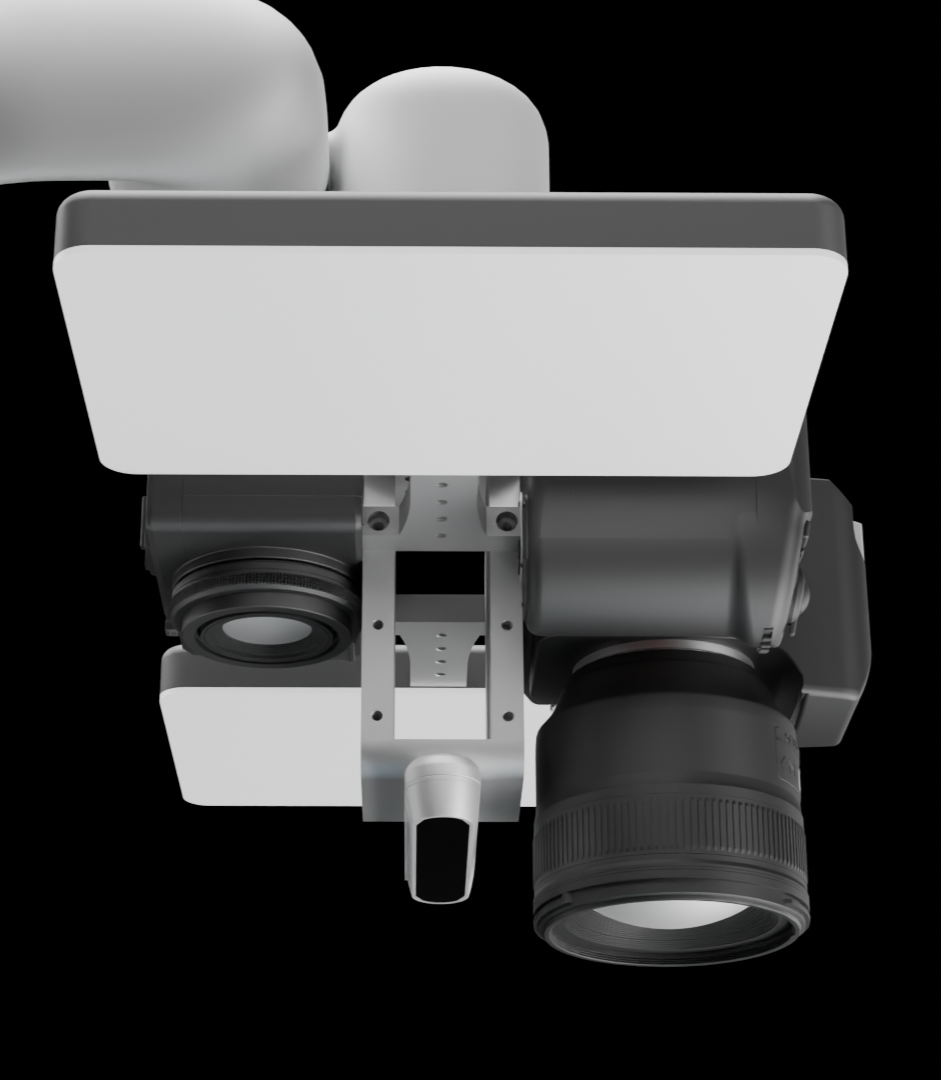

Snapshot

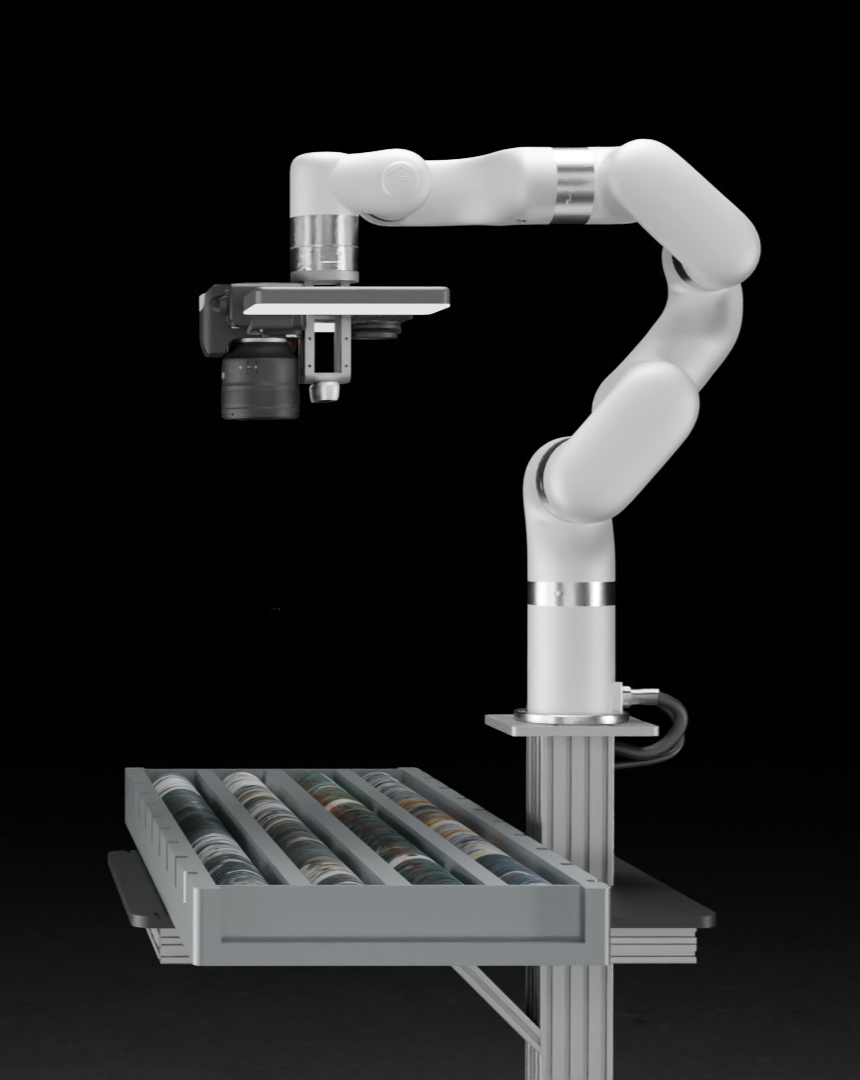

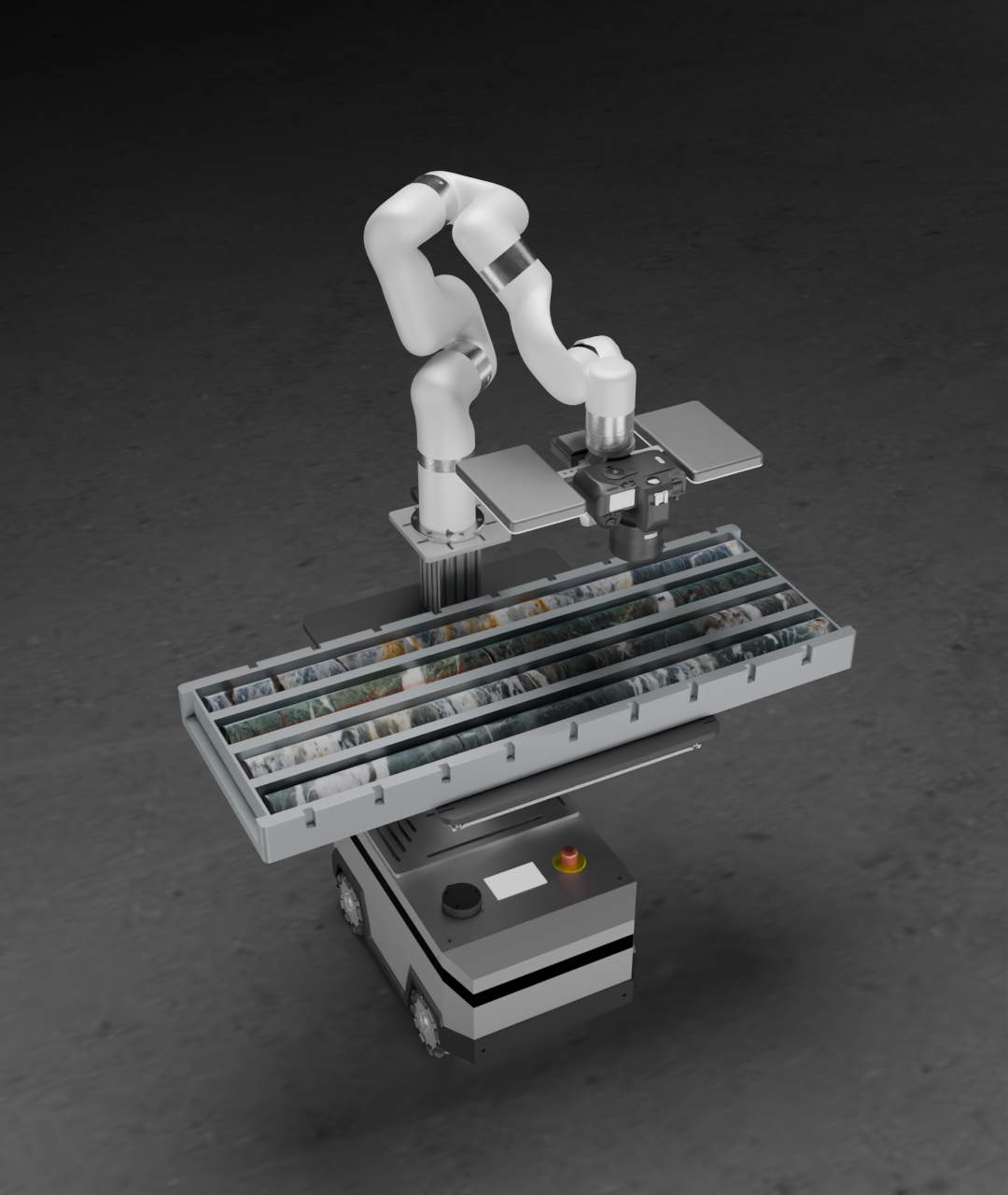

Capture ultra-HD core photographs with consistent and even lighting
Point Clouds
Acquire aligned RGB-depth images for immersive 3D core analysis
Macro Photography
Capture images up to 1-micron resolution for detailed rock and texture analysis
Photogrammetry
Photogrammetry-style images for 3D reconstruction

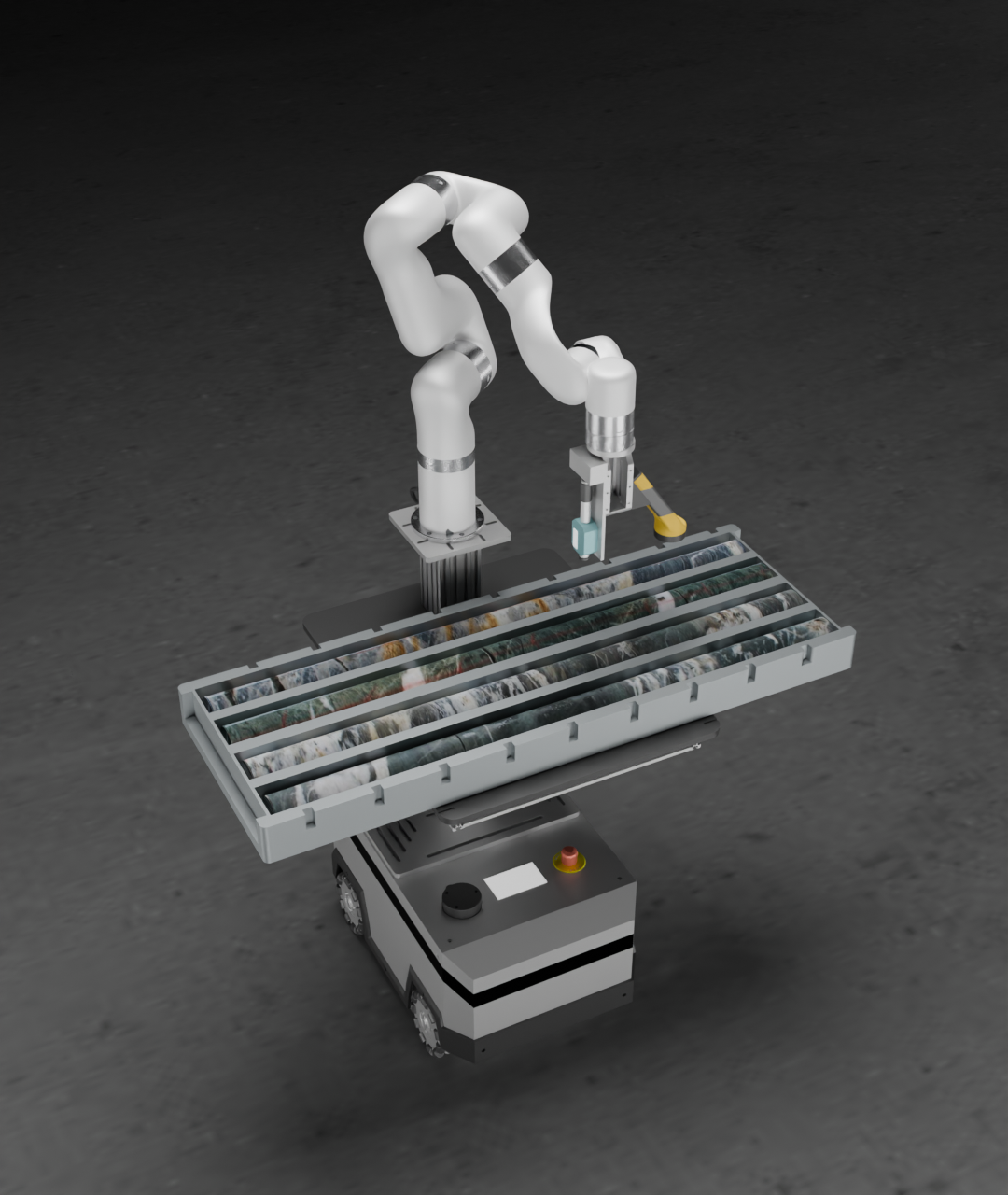

Rock Strength
Test rock hardness to estimate Unconfined Compressive Strength (UCS)
Magnetic Susceptibility
Record magnetic susceptibility and electrical conductivity data
Infrared Spectroscopy
Capture VNIR-SWIR or FTIR spectra for mineralogical analysis
LIBS/XRF
Acquire geochemical data using either LIBS or XRF sensors
UV Imaging
Capture fluorescent minerals under the high-powered ultaviolet light
Technical Specification
Hardware

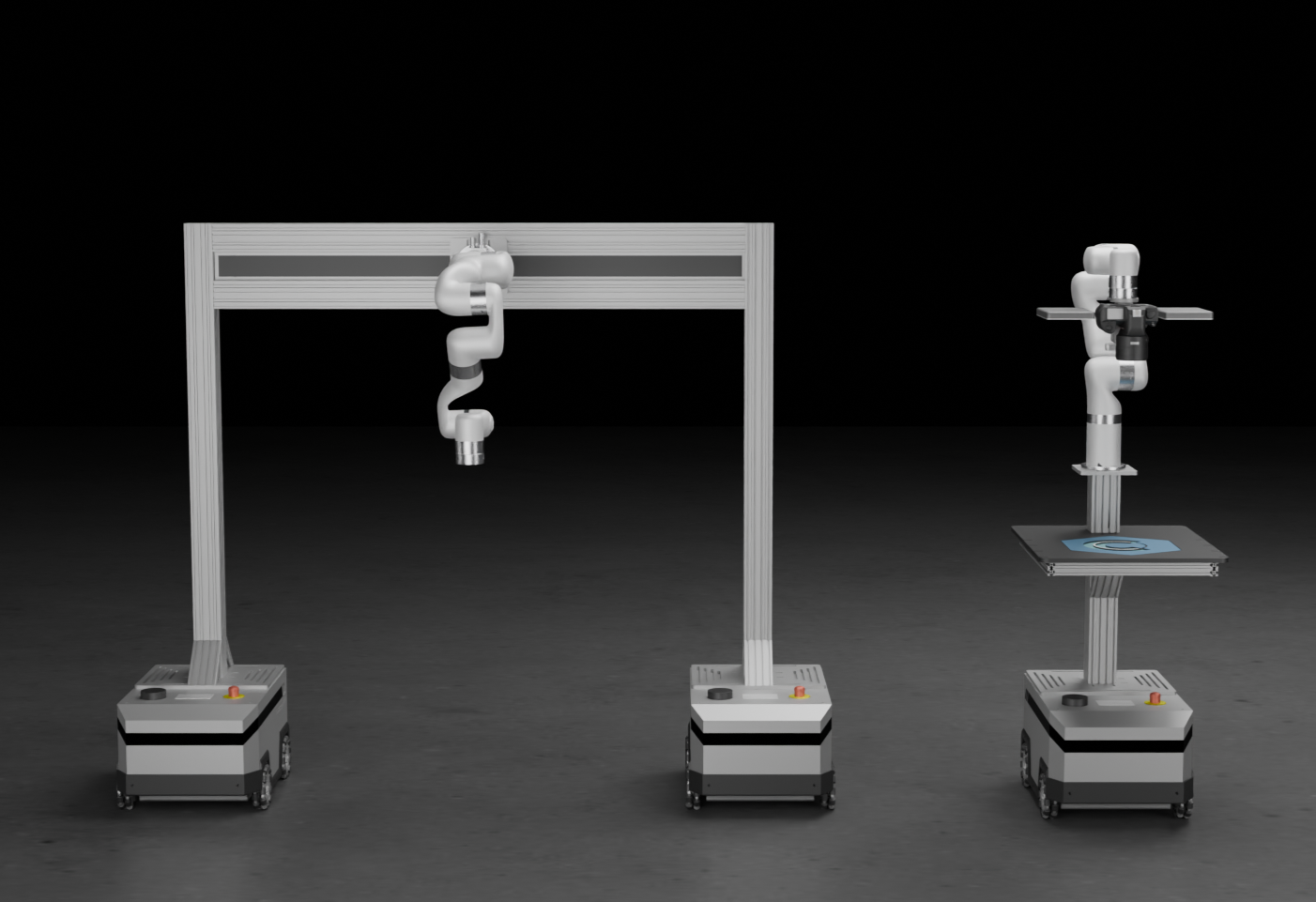

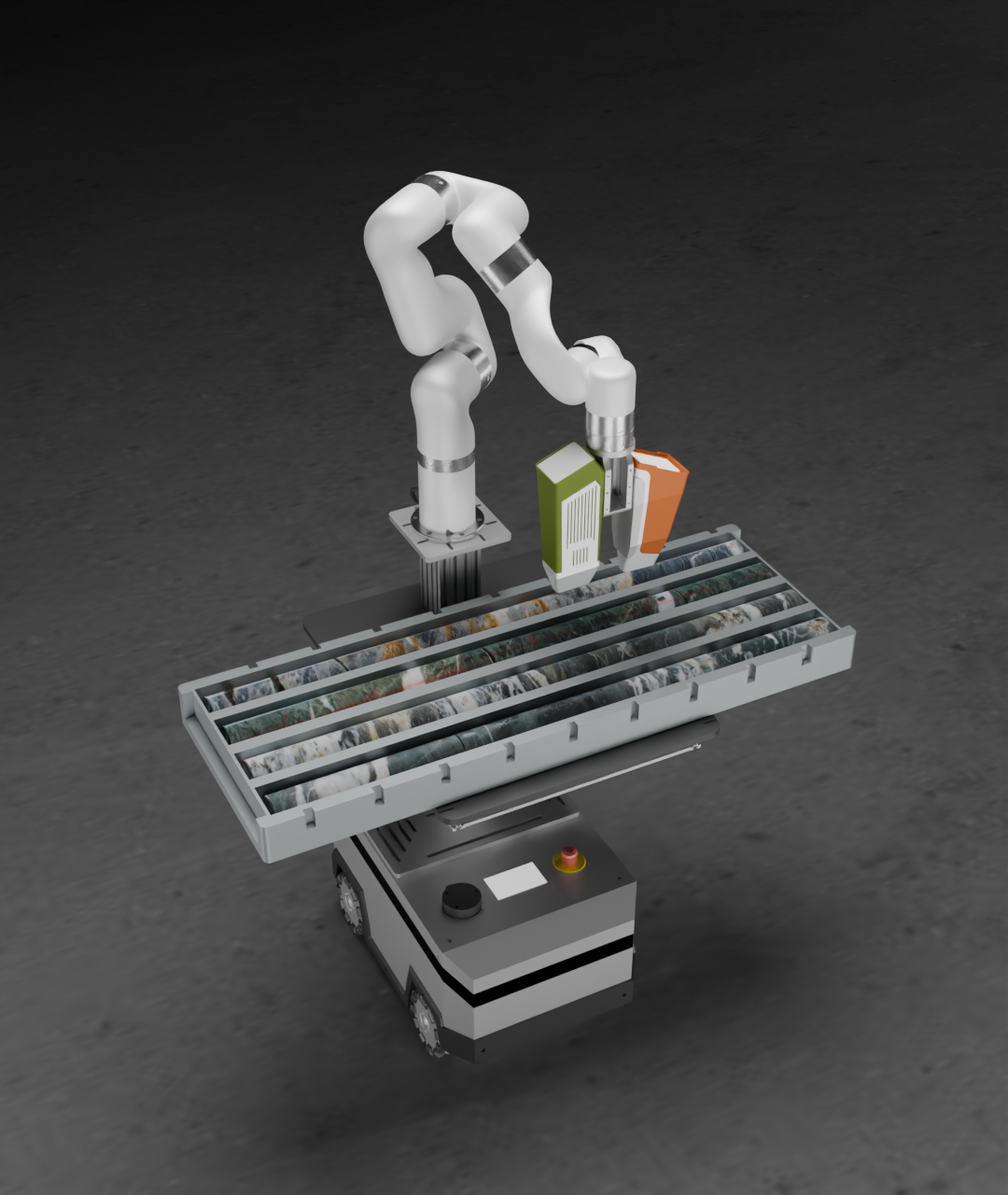

| Stallion (Standalone platform) | Cantry (Core gantry) | |
|---|---|---|
| Weight | 45 kg | 85 kg |
| Mobile speed range | 50-200 mm/s | 50-200 mm/s |

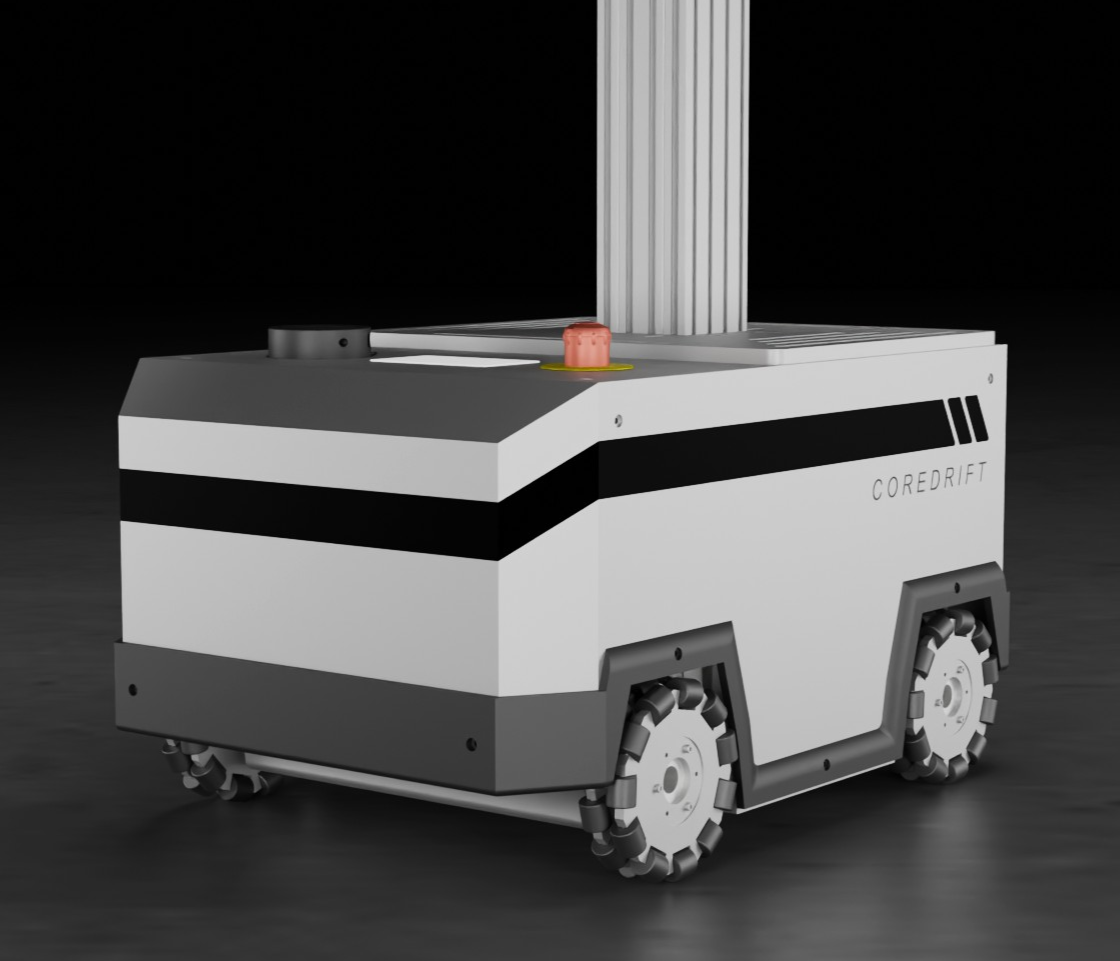

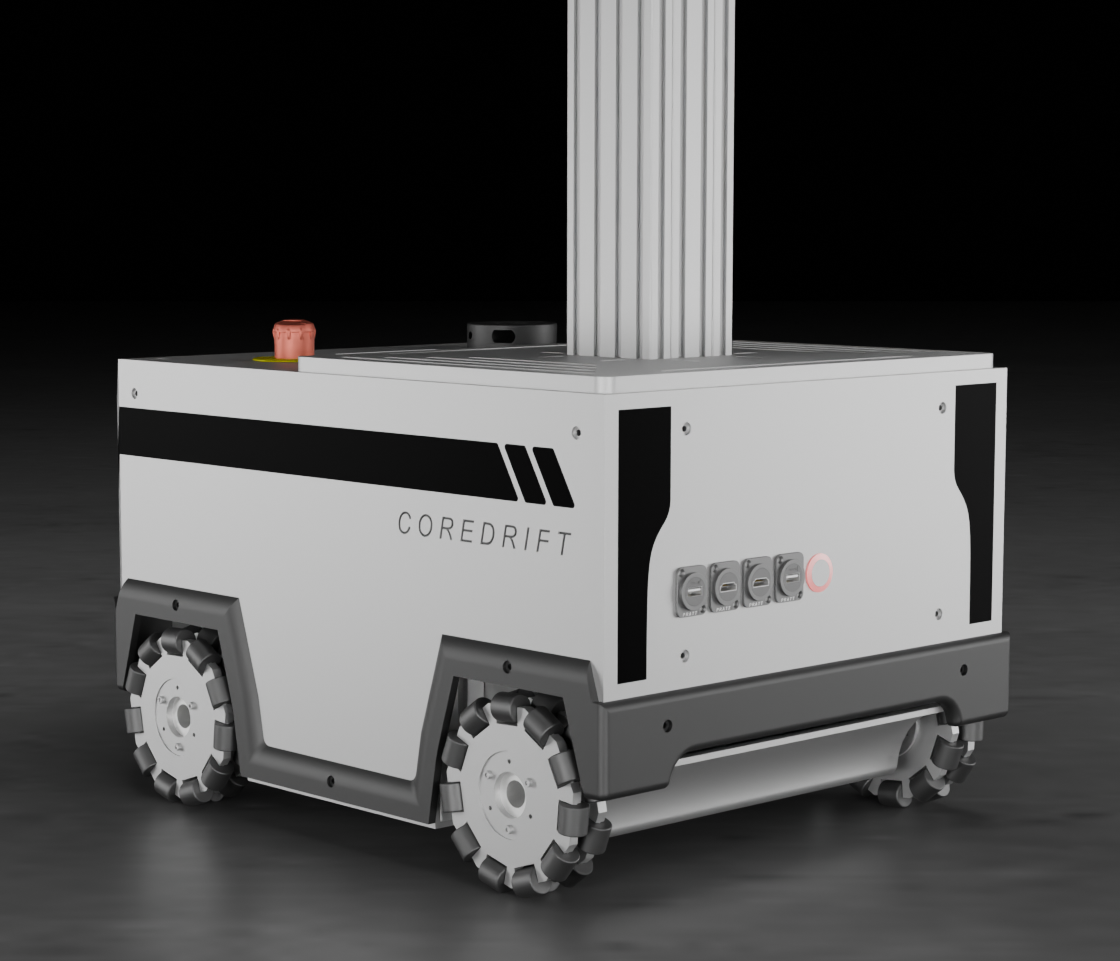

| Mobile wheel drive | All wheels drive (AWD) | All wheels drive (AWD) |
| Mobile wheel type | Omni directional | Omni directional |
| Table payload | 25 kg | NA |
| Table DoF | 2 | NA |
| Arm speed range | 1-100 mm/s | 1-100 mm/s |
| Arm DoF | 6 | 6 |
| Arm payload | 5 kg | 5 kg |
| Arm repeatability | ±0.1 mm | ±0.1 mm |
| Power (AC) | AC 220V 400W or DC 24V 15W | AC 220V 600W or DC 24V 20W |
| Battery lifetime | 12 hrs logging | 9 hrs logging |
| Charging time | 3 Hours | 3 Hours |
| Navigation system | IMU, LiDAR, RGB-Depth camera | |
| Positional accuracy | ±5 mm | ±5 mm |
| Connectivity | WiFi, LAN, USB 3 | |
| Operating temperature | 5-50 °C | 5-50 °C |

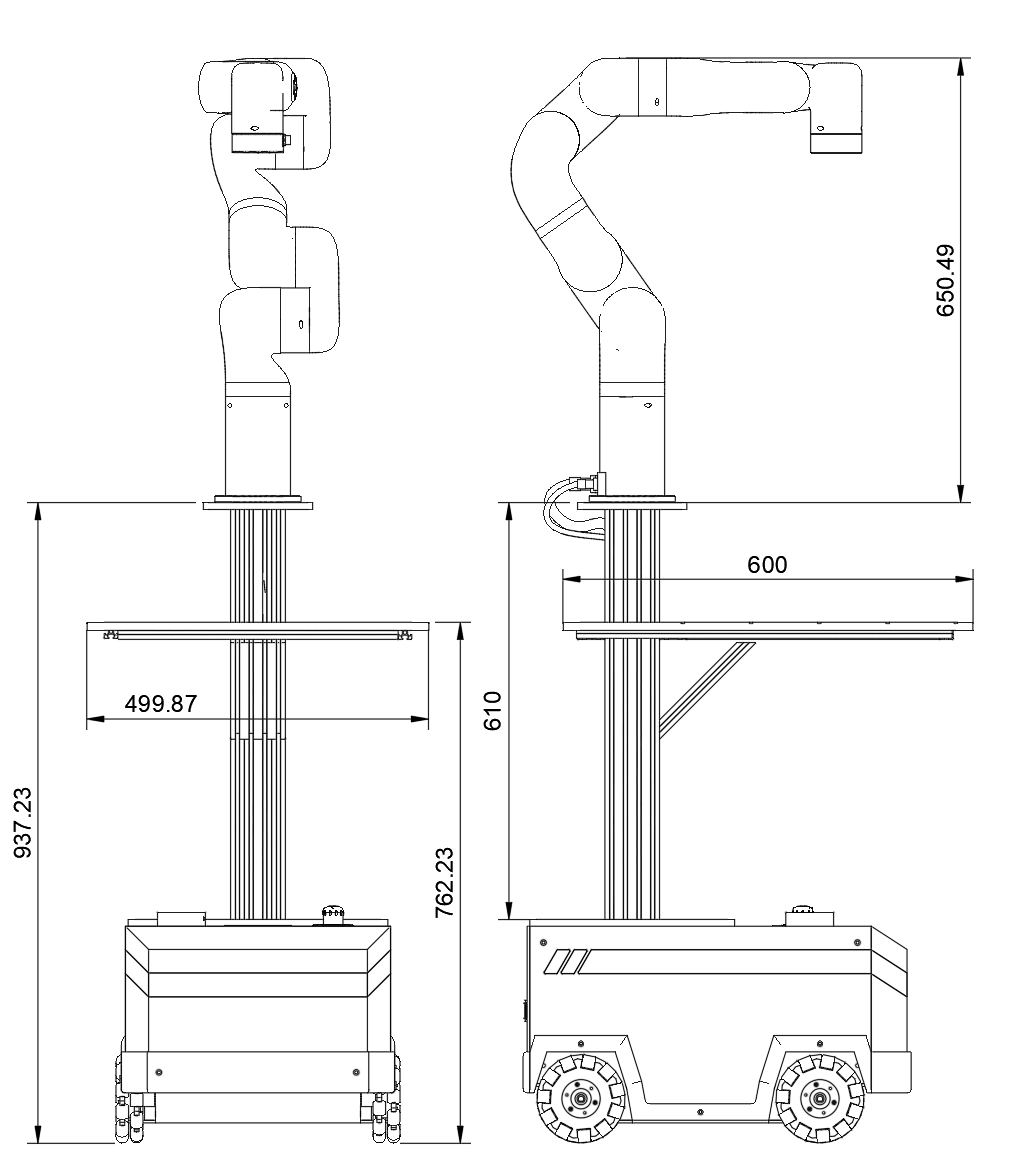

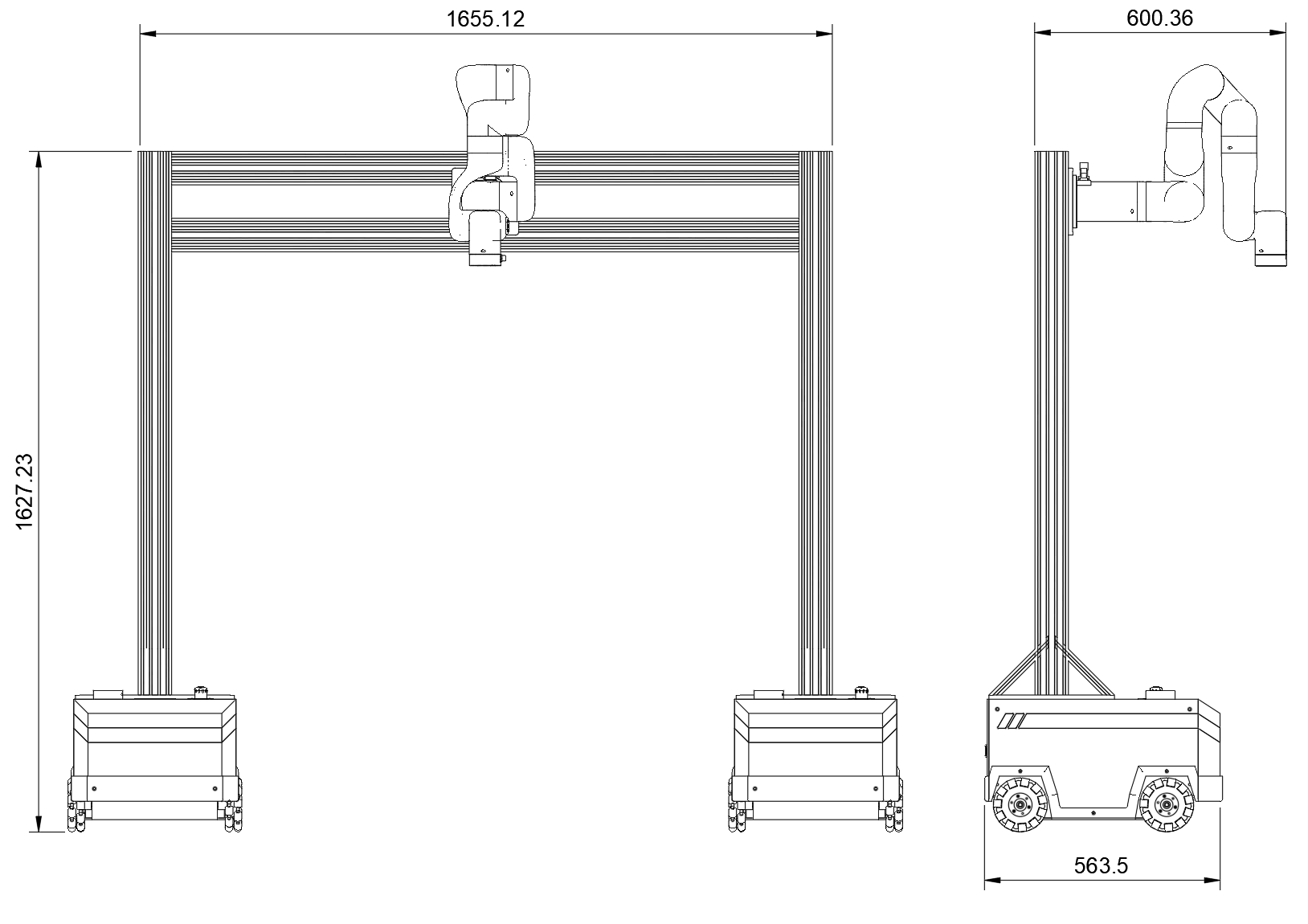

Dimension
Compatibility
Operating Systems: Windows 10, macOS, Ubuntu
API Interface: RESTful API built with Python FastAPI. Compatible with HTTP clients, scripting languages, and integration frameworks.
Software
Fully integrated with MLange desktop suite and MLange Mobile for field use.
Support
We offer free training and premium after-sales service for the first year.
Sensor Integration
Note: We are not affiliated with or endorsed by the following manufacturers. However, these sensors are widely used and represent potential candidates for integration.
| Model | Analytical | Type | Provider |
|---|---|---|---|
| Vanta | XRF | Geochemistry | Evident |
| X-MET8000 | XRF | Geochemistry | Hitachi |
| TRACER 5 | XRF | Geochemistry | Bruker |
| SciAps X-550 | XRF | Geochemistry | SciAps |
| SciAps Z-903 | LIBS | Geochemistry | SciAps |
| SciAps reveNIR | VNIR-SWIR | Mineralogy | SciAps |
| ASD TerraSpec | VNIR-SWIR | Mineralogy | Malvern Panalytical |
| ATP9110 FieldSP | VNIR-SWIR | Mineralogy | Optosky |
| NIRQuest+2.5 | VNIR-SWIR | Mineralogy | Ocean Optics |
| Progeny | Raman | Mineralogy | Rigaku |
| ResQ CQL | Raman | Mineralogy | Rigaku |
| FirstDefender RMX | Raman | Mineralogy | Thermo Fisher |
| Equotip 550 | Hardness | Geotechnical | Screening Eagle |
| KT-10 Magsus | Magnetic Susceptibility | Geophysical | Terraplus |
| MS3 meter | Magnetic Susceptibility | Geophysical | Bartington |
Warranty
We offer a 1-year warranty covering manufacturer defects.
Lead Time
Standard production lead time is 2–3 months. Please contact us for rush orders.
